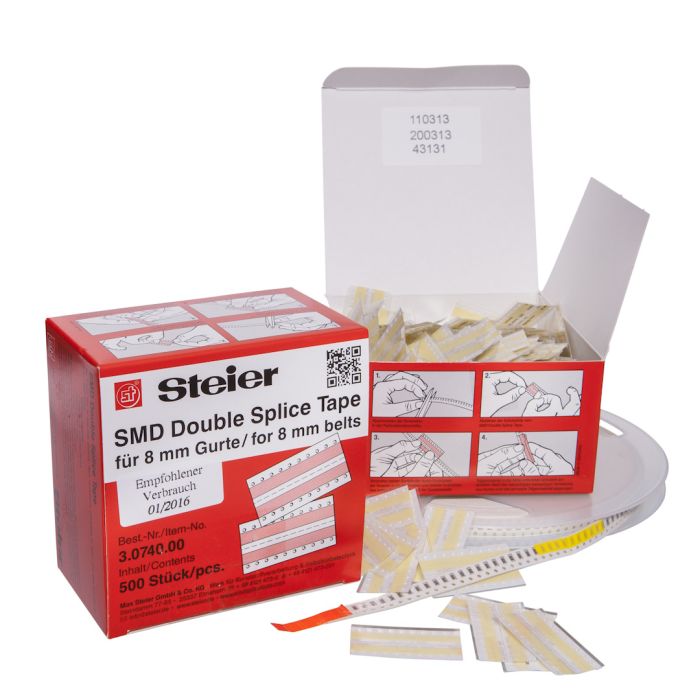

SMD Double Splice Tape
£73.92 £61.60
In Stock
SKU
BZ011
MPN: 3.0740.00
Steier's SMD Double Splice Tapes provide a quick and easy method of joining 8mm paper SMD component tapes without the need for a splicing tool. The 3.0740.00 Doube Splice Tapes make light work of splicing.
- Takes seconds to splice reels together
- Easy sprocket hole alignment
- For 8mm paper component reels
Standard Delivery
Usual shipping within 2-5 daysNext Day
Service available. Cut-off by 12.30pmCollect in Store
Click & CollectYou May Also Like
Check items to add to the cart or
Four simple steps to no tool splicing. (Download the datasheet from the attachment link above)
- Cut each SMD tape end squarely across a sprocket hole so that slightly less than 1/2 a hole remains.
- Remove the opaque cover tape from the Tape Connector, while ensuring that the yellow adhesive strips remain attached to the clear plastic carriers.
- Join together the ends of the SMD tapes by engaging the raised dots of the clear carrier in the sprocket holes. Press the yellow adhesive tape onto the component cover tape.
- Fold the Tape Connector around the SMD tape at the perforations, engage the dots, and press the other adhesive strip to the underside of the SMD tape. (The clear plastic carrier is removed from the tape joint and discarded).
| Brand | Steier |
|---|---|
| Customise | No |
| Collect in Store | Yes |
| MPN | 3.0740.00 |
