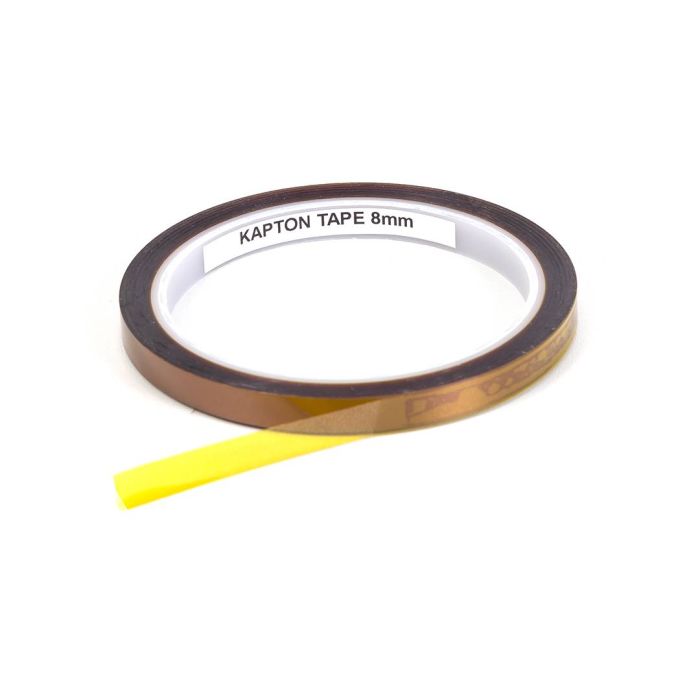

Polyimide Kapton Tape 8mm

£5.39 £4.49
Available to Order
SKU
K023
MPN: CHIC8T

An 8mm width polyimide tape ideal for masking a PCB during wave or select soldering.

Standard Delivery

Usual shipping within 2-5 days

Polyimide kapton film has a combination of properties that make it suitable for a wide range of applications and for many different industries. It maintains its physical, mechanical and electrical properties over a wide temperature range. Available from 3mm to 25mm in stock, custom widths can also be produced. Manufactured on a 33 metre roll length.

Ideal for PCB masking prior to wave soldering

No adhesive residue

Available in 33 metre rolls

Custom sizes available (Contact Sales)

More Information
Brand Somerset Solders
Customise No
Collect in Store No
Specification

Width: 8mm
Roll length: 33 metres
Adhesive type: Silicone
Total thickness: 63.5 microns
Backing thickness: 25 microns
Elongation at break: 55%
Breaking strength: 5.4 Kg per cm
Dielectric strength: 7000 KV (@ 200°C)
Thermal classification: H (200°C)
Adhesion to Steel: 6.2 N/25mm
Temperature range: -70 to 250°C

MPN CHIC8T
