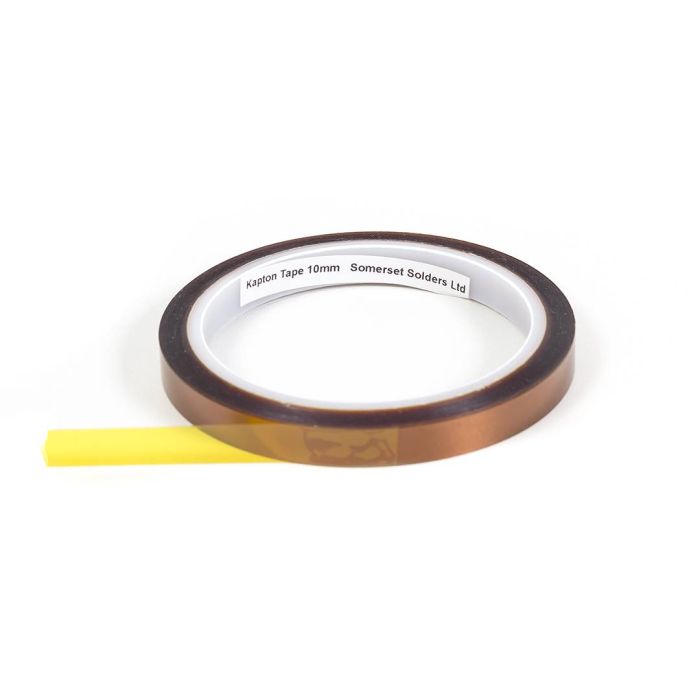

Polyimide Kapton Tape 10mm

£8.08 £6.73
Available to Order

A handy 10mm width polyimide tape ideal for masking areas during wave soldering or other high temperature applications.

Standard Delivery

Usual shipping within 2-5 days

10 mm polyimide kapton film has a combination of properties that make it suitable for a wide range of applications and for many different industries. It maintains its physical, mechanical and electrical properties over a wide temperature range. Available from 3mm to 25mm in stock, custom widths can also be produced. Manufactured on a 33 metre roll length.

Ideal for PCB masking prior to wave soldering

No adhesive residue

Available in 33 metre rolls

Custom sizes available (Contact Sales)

More Information
Brand Somerset Solders
Customise No
Collect in Store No

Width: 10mm
Roll length: 33 metres
Adhesive type: Silicone
Total thickness: 63.5 microns
Backing thickness: 25 microns
Elongation at break: 55%
Breaking strength: 5.4 Kg per cm
Dielectric strength: 7000 KV (@ 200°C)
Thermal classification: H (200°C)
Adhesion to Steel: 6.2 N/25mm
Temperature range: -70 to 250°C
