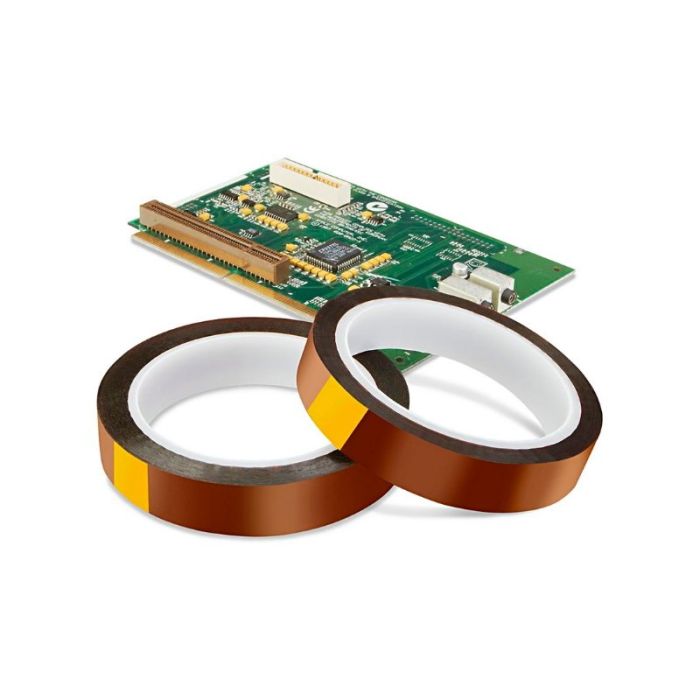

Antistatic Polyimide Tape 9mm

£9.72 £8.10
Available to Order
SKU
K040
MPN: CHIC1AESD-9T

Low voltage generating tape for high temperature masking. 9mm width on 33 metre rolls.

Standard Delivery

Usual shipping within 2-5 days

Antistatic Polyimide kapton tape film is an acrylic adhesive tape used for where masking of temperature sensitive components is required. With a high maximum temperature of 250°C Polyimide kapton tape is ideal for soldering PCBs through a wave soldering process. Antistatic properties produce a maximum generated voltage of lower than 50V unwinding and peel off of the tape. Tested to ASTM D 149.

Very low voltage charge generating when unwinding and peeling off

Ideal for PCB masking prior to wave soldering and heat-resistant insulation

No adhesive residue

Available in 33 metre rolls

More Information
Brand Somerset Solders
Customise No
Collect in Store No
Specification

Base film polyimide tape thickness: 25um (+/-2)
Adhesive type: Acrylic
Total film thickness: 60um (+/-5)
Peel strength: 650 Gf/in (+/-100)

ESD properties at RH 50% & Temp 23°C(+/-3):
Static charge: less than 50V (unwinding and peel off)

Tape width: 9mm
Tape plastic core: 76mm
Tape length: 33 metres



MPN CHIC1AESD-9T
