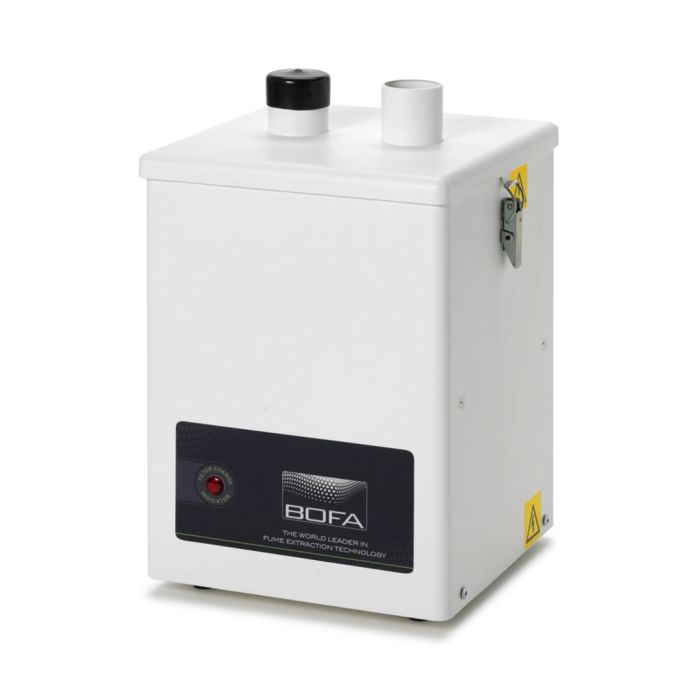

BOFA V250 Extraction Unit

If you require a V 250 main unit without the flexible stay-put arms and bench mounting part kits, then this V 250 option is what you need.

• Gives the option to add or use existing arm kits
• Attach the 1000mm A1020048 arms
• Ready fitted with the A1030102 pre-filter and A1030099 HEPA Gas combined filter

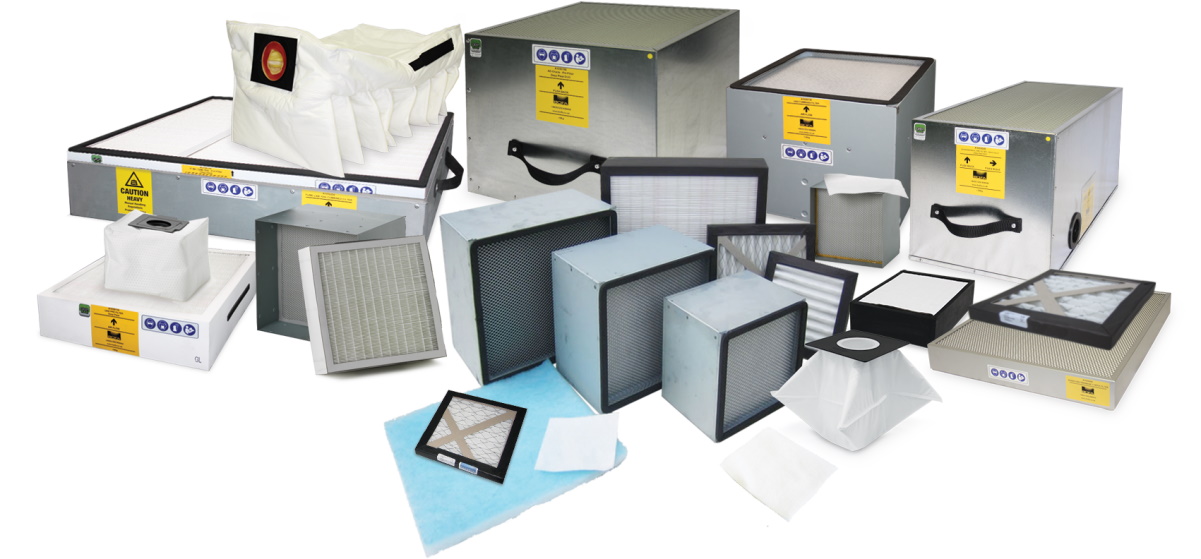

• Spares such as filters, pumps and arms readily available in stock

TECHNICAL DATA SHEET DOWNLOAD FOR THE V 250 EXTRACTOR

V 250 extraction unit
Dimensions: (HxWxD)    380 x 260 x 260mm
Cabinet construction: Powder-coated mild steel
Airflow / Pressure:    180m(3) / 30mbar
Voltage:    230V
Noise level:    < 55dBA (at typical operating speed)
Weight: 10kg
Duct size: 50mm, Duct Run: 5 metres

Pre Filter Fitted Part: A1030102
Media:    Glass fibre paper
Construction:    Pad
Efficiency:    F7 (96% @ 2 microns)

Combined HEPA* / Gas Fitter Part: A1030099
(* High-Efficiency Particle Air Filter)
Media:    H13 Glass fibre paper
Construction: Maxi Pleat with webbing spacers
Efficiency:    H13 (99.997% @ 0.3 microns)
Gas:   Impregnated Activated Carbon
