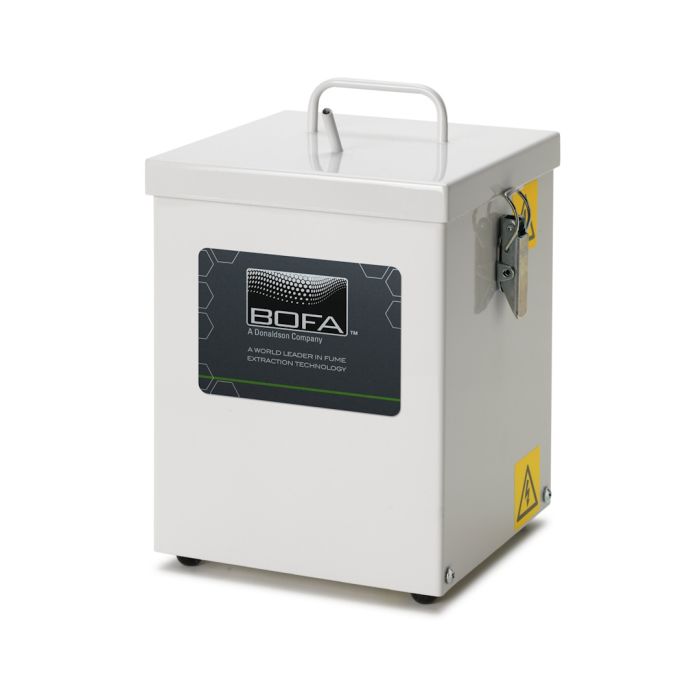

BOFA T1 Single Soldering Iron Tip Extraction System

The BOFA T1 small extraction unit is perfect for the workbench, removing fumes during hand soldering. With the universal soldering iron kit fitted, fumes are drawn through the small bore tubes to be safely filtered.

• Supplied fitted with a Pre-Filter (A1030087) and Combined Main Filter (A1030086)
• Dimensions: 270 x 200 x 185mm

• Weight: 5 kgs
• Electrical Data: 230v Single Phase 50/60Hz Full Load
• Metal construction: Power-coated mild steel


THE BOFA T1 SOLDERING FUME EXTRACTOR DATASHEET

Filters:
Pre-Filter A1030087
Material: Filter pad material
Efficiency: 85% particulate removal @ 0.8 um

Combined Filter A1030086
HEPA: Pleated glass fibre material
Efficiency: 99.997% particulate removal @ 0.3 um
Gas Filter: Treated activated carbon
