Polyimide Kapton Dots 6mm

£14.04 £11.70
Available to Order
SKU
K005
MPN: 590LC-6D

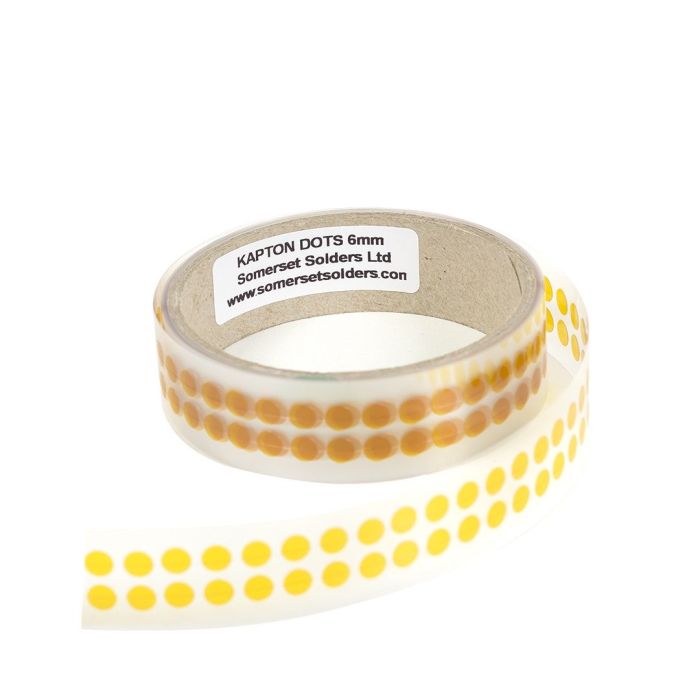

1000 per roll 6mm polyimide dots for high temperature solder masking.

  • Protect fixture mounting holes and component pads from solder filling
  • Easy to remove and no residues left
  • Supplied on convenient roll size

Standard Delivery

Usual shipping within 2-5 days

Polyimide kapton film has a combination of properties that make it suitable for a wide range of applications and for many different industries. It maintains its physical, mechanical and electrical properties over a wide temperature range. Supplied on a 1000 off dots per roll.

Ideal for PCB masking prior to wave soldering

No adhesive residue

Available in 1000 dots per roll

Custom sizes available (Contact Sales)

More Information
Brand Somerset Solders
Customise No
Collect in Store No
Specification

Adhesive type: Silicone
Total thickness: 63.5 microns
Backing thickness: 25 microns
Elongation at break: 60%
Breaking strength: 5.4 Kg per cm
Dielectric strength: 7500 KV (@ 200°C)
Thermal classification: H (200°C)
Adhesion to Steel: 0.3 Kg per cm
Temperature resistance: 260°C
UL approval: E113238

MPN 590LC-6D
