PCB Rack with 42 slots

£76.74 £63.95
In Stock
MPN: FPV91600200
Apply Remove

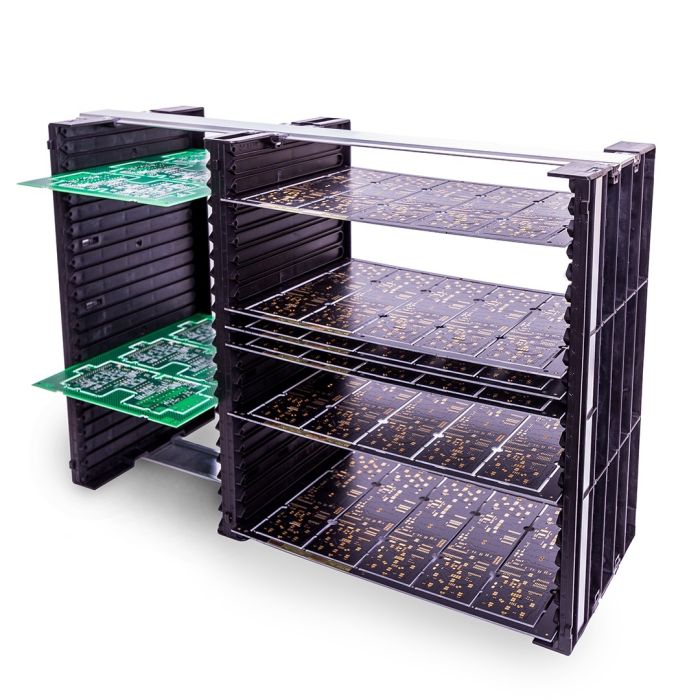

A 42 slot PCB rack holding boards up to 254 x 400mm. Position the central panel for two different sized boards.

  • Sturdy construction
  • Easily adjustable end and central walls
  • Add additional centre walls to increase PCB capacity

End panel
Fami part no: F PV 6452 00 07
Overall dimensions: 350 x 30 x 190mm
Slot width: 2.5mm
Slot depth: 3.0mm
Slot pitch: 15.3mm
Material: Injection moulded conductive co-polymer polypropylene
ESD conductive material value of 1 x 10(4) M ohms

Central panel
Fami part no: F PV 6852 00 07
Overall dimensions: 350 x 35 x 190mm
Slot width: 2.5mm
Slot depth: 3.0mm
Slot pitch: 15.3mm
Material: Injection moulded conductive co-polymer polypropylene
ESD conductive material value of 1 x 10(4) M ohms

Guide rails
Material: Aluminium
Fami part no: F PV 9160 00 00
Length: 552mm
Width: 53mm
ESD conductive material value of 1 x 10(4) M ohms

Fami part no: F PV 9010 00 07

Total parts for the F PV 9160 02 00
End panel: 2 off
Central panel: 1 off
Guide rail: 2 off
Fasteners: 1 set

Standard Delivery

Usual shipping within 2-5 days

Next Day

Service available. Cut-off by 12.30pm

Collect in Store

Click & Collect

The Fami FPV 9160 02 00 is a two-sided slotted frame comprising the Fami end panels FPV 6452 00 07 and a central panel FPV6852 00 07. These panels are mounted on two aluminium guide rails FPV 9160 00 00. These rails are 552mm long so allowing PCBs of up to 254 x 400mm are fitted into the rack. The aluminium rails are reinforced for extra rigidity. The slot profiles in the end panels are 2.5mm wide and 3.0mm deep and on a 15.3 pitch. This rack has 42 PCB slots and is an overall size of 552 x 350 x 190mm. Supplied with a set of fasteners for easy assembly.

Made from injection moulded conductive co-polymer polypropylene

Suitable for temperatures up to 100°C

Integral backstops

Assembled racks fit into standard euro containers

ESD conductive material value of 1 x 10(4) M ohms
