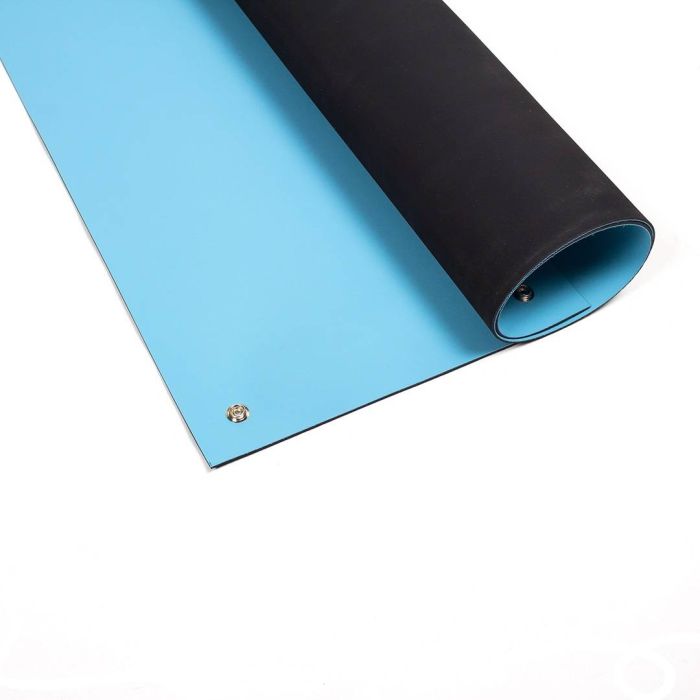

ESD Bench Matting Blue 900 x 600mm

From £34.74 £28.95
Available to Order
Only %1 left
SKU
93
MPN: EBM-900600B

A popular sized ESD bench mat in a light blue material dissipative top layer. Easy to clean surface. We apply the 10mm grounding studs where you need them most.

  • Plenty of grounding stud options to chose from
  • 2mm think material comprised of dissipative and conductive layers
  • Solder splash resistant

SEE STUD POSITION IMAGE FOR OPTIONS AVAILABLE

Matting Density: 1.4 +/- 0.02 g/cm3 (DIN 53479)
Matting Abrasion (5N load): 130mm3 (DIN 53516)
Matting Hardness: 78 Shore A (DIN 53505)
Matting Impression test: 0.1mm (DIN 51955)
Matting Light reflection: 19% - 29% (DIN 5036)
Matting usable temperature range: Maximum 60°C
Point to point resistance Rp Typical value: 10(7) ohms

Resistance to groundable point Rg Typical value: 10(6) - 10(7) ohms
Test standard: EN61340-2-3

Standard Delivery

Usual shipping within 2-5 days

When preparing a static controlled production bench area one of the first considerations is the introduction of an ESD bench mat. Combined with an Earth grounding cord, Earth bonding plug, and wrist strap and cord set you to have the starting blocks to grounding static. A popular colour the blue ESD bench matting material is a 2mm thick dissipative coloured top layer and black conductive rubber bottom layer.

2mm high quality smooth easy clean finish

Matting is resistant to solder splashing and abrasion

Position 10mm studs where grounding cord connections best suited

Can be loose-laid or glued to the bench

More Information
Brand Somerset ESD
Customise No
Colour Blue
Collect in Store No
MPN EBM-900600B
