Pre-heat and Reflow Hot Plate

£407.88 £339.90
In Stock
SKU
QUICK870
MPN: Quick 870ESD

A pre-heat hot plate or mini reflow oven. Simply move the hinged hood for one or the other!

  • Dual-purpose equipment
  • Reflow small SMT PCB assemblies
  • Hot plate temperature from 50°C to 300°C
  • Plate size is 180 x 200mm

Standard Delivery

Usual shipping within 2-5 days

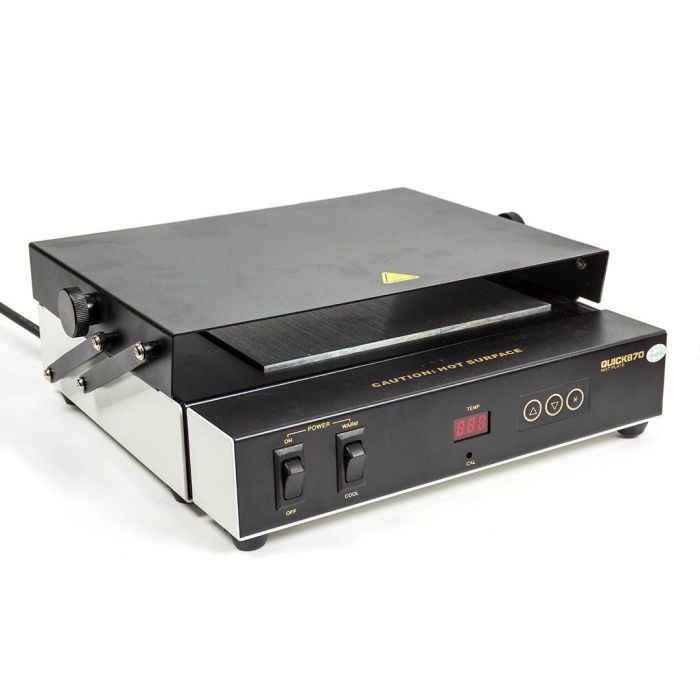

This Quick 870 is an aluminium hot plate heated by four cartridge elements. This is great for the reworking of printed circuit boards offering a temperature controlled hot plate. It is also a mini-reflow oven for reflowing small SMT board assemblies. Simply move the hinged hood to expose the hot plate and then swing back in to position to cover the board and create a small oven. With a hot plate area of 180 x 200mm and a temperature adjustment range of between 50°C and 300°C, the Quick 870 provides precise and stable temperature with a closed loop sensor and PID Control. The Quick 870 displays the actual hot plate surface temperature even under unheated cool down condition to avoid accidents.

Even surface plate temperature distribution

800W Aluminium hot plate

Closed loop sensor, PID Control, precise and stable temperature

ESD safe by design

More Information
Brand Quick Soldering Equipment
Customise No
Collect in Store No
Specification

Heater power: 800W
Voltage: 220VAC
Hot plate material: Aluminium
Plate area: 180 x 200mm
Temperature sensor: Closed loop K type thermocouple temperature CPU control
Range of adjustable temp: 50°C - 300°C
Temperature stability: +/- 2°C
Unit size: 280 x 290 x 100mm (W x L x H)
Weight: 5 kgs



MPN Quick 870ESD
